SceneView BV800

The SCENEview BV800 is designed to assist SOCO's visualise a wide range of evidence including body fluids, blood and GSR at crime scenes.

The system has a unique dual camera configuration: Visible/Near IR camera and a residual light amplifier.

Visible / Near Infra-Red Camera - blood, GSR and body fluids detection

The visible / near infra-red sensitive camera is used for examining visible and fluorescent evidence in combination with new high power LED lightcubes that can be clipped onto the top of the instrument. The SCENEview BV800 incorporates an Infra-Red illumination source and that can visualise larger areas of blood, for example on clothing, floors and carpets.  Larger areas of blood often absorb the IR light whilst the substrate reflects the IR, resulting in a clear area of contrast.

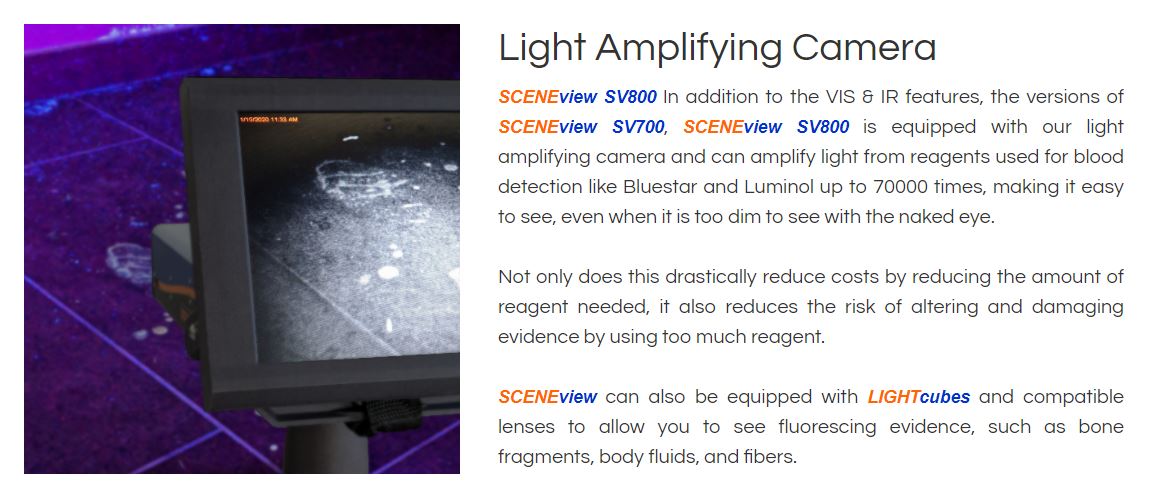

Residual Light Amplifier Camera - blood detection on difficult surfaces

This camera is used especially for blood examination using chemical regaents such as bluestar, luminol etc...  The camera is highly sensitive to the blue luminescence from and boost this by 70,000 times.  This provides an effective method to visualise blood on substrates that do not provide a constrast in the IR and especially useful for highly dilued blood.



The SCENEview BV800 is a light weight, battery or mains power operated that is suitable for either Scene or laboratory use.



Key hardware and software features:-

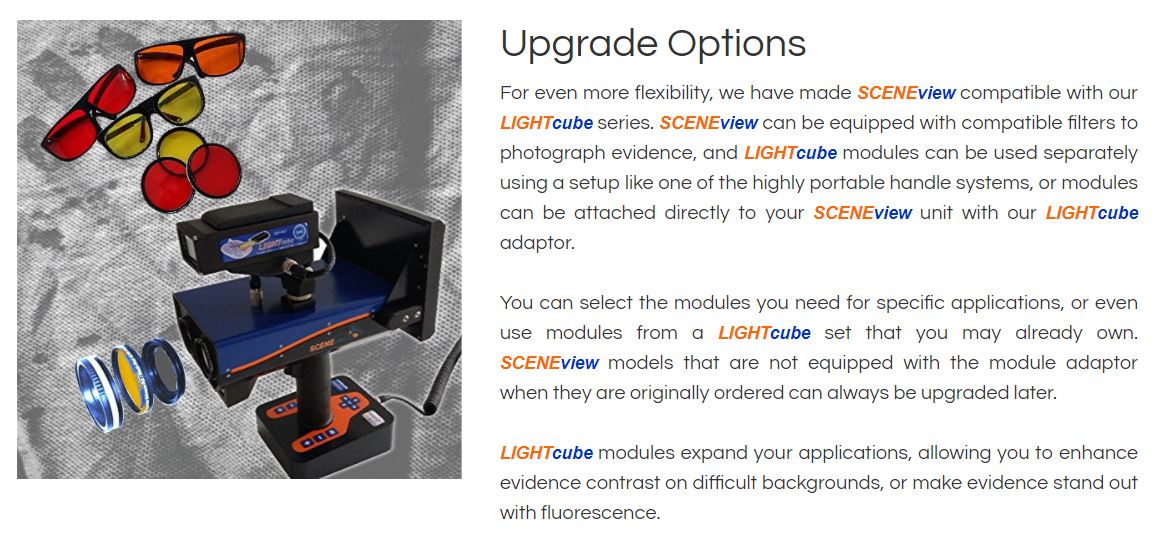

  • Modular and flexible product with choice of integrated LED light sources
  • Capture and record JPEG images
  • Capture and record crime scene movies (AVI files)

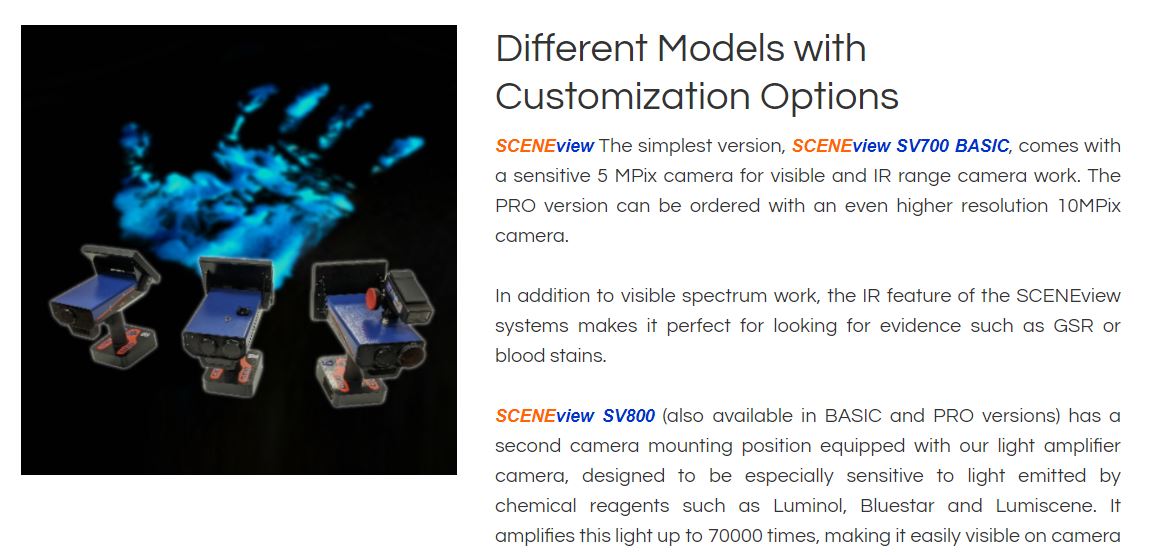

  • Military grade residual light amplifier with up to 70,000X amplification and 1.3Mpixel camera
  • Additional 5 Mega pixel IR sensitive monochrome/colour camera
  • Auto focus with manual override
  • 6.5" colour touch panel display

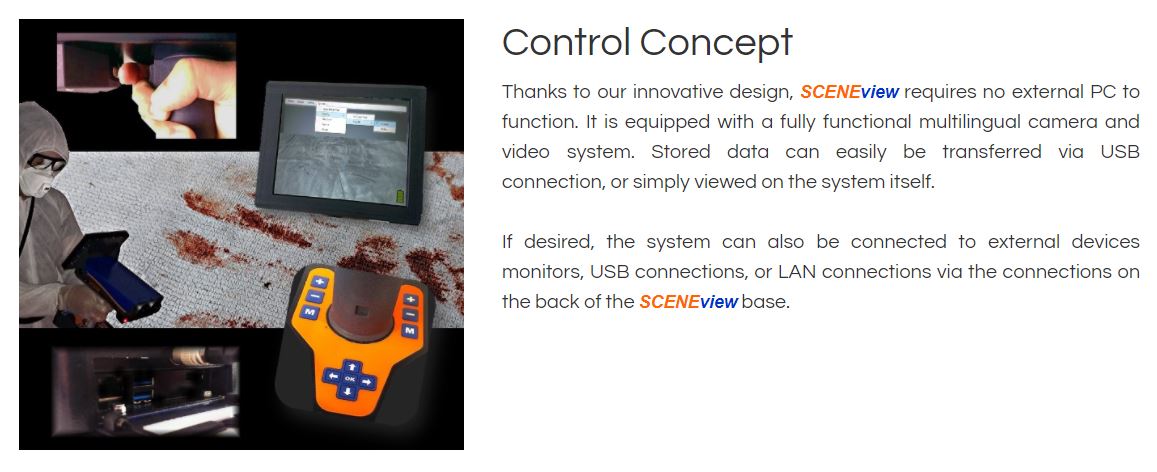

  • Embedded PC for capturing and storing images
  • External connectivity to monitor, mouse, keyboard, pen drive via USB
  • Integrated 850nm IR illumination and red orientation light
  • Battery or mains power operated
  • Lightweight handheld device 2.1 Kg

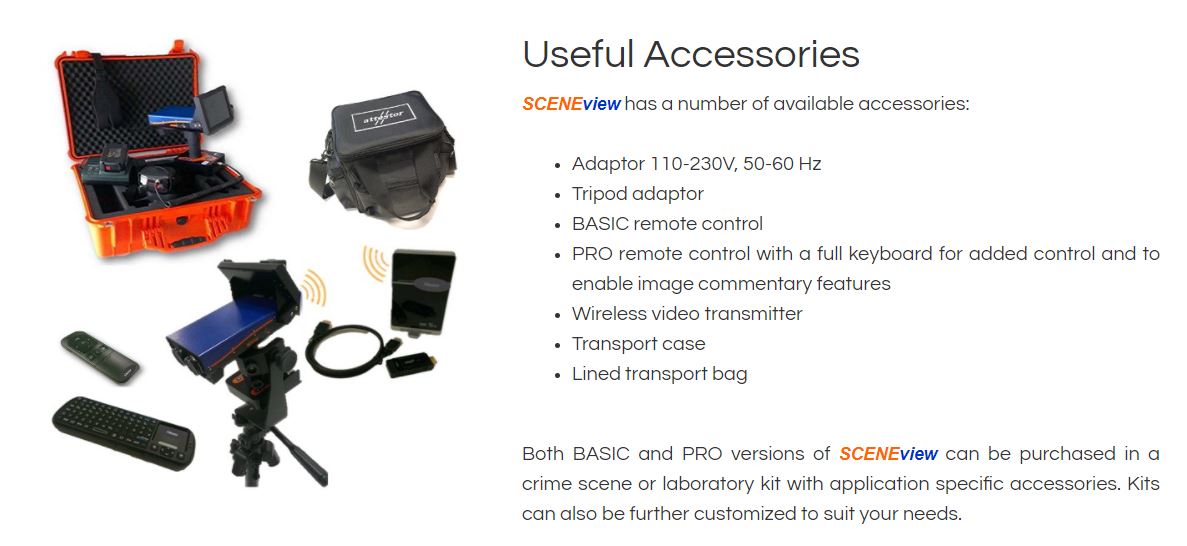

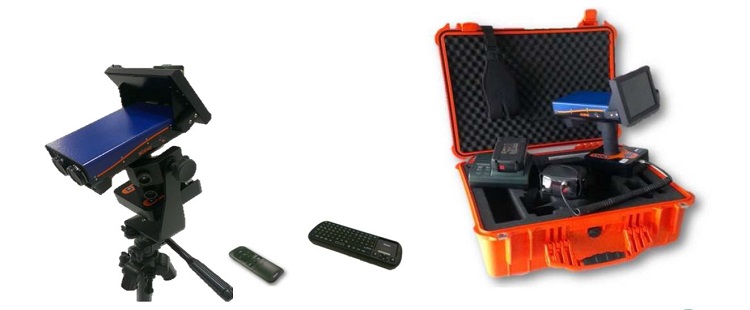

  • Wide range of accessories

Applications:-

  • Visualise, capture and record blood stains quickly and easy
  • Use IR illumination for visualising blood and GSR on many surfaces
  • Use image intensifier mode for chemically treated blood (compatible with Bluestar, Luminol, Hemascene..)
  • Examination of fluorescent evidence for the examination of body fluids, fibres, hairs or other evidence types
