Docustat DS-220 ESD Indented Writing System

Price On Application

The Docustat DS-220 electrostatic system is the go-to choice for examiners for documentation of indented writing.

The Projectina AG Docustat DS-220 is a dedicated system for visualisation of indented writing on documents. More sensitive than oblique lighting with Docustat provides permanent 1 to 1 transparencies of indented writing whilst ignore visible script.

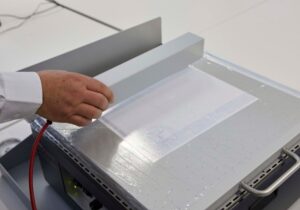

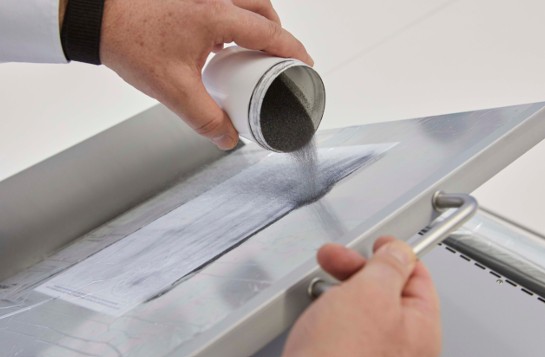

The Docustat DS-220 is non-destructive and responds to indented writing. Traces are secured by charging the IW plastic film with the corona unit, applying developing powder and then securing the grooves with the adhesive film.

Features

User-friendly design, easy toner emptying, time and voltage control supports individual process control
As an alternative to toner development, the toner pads technique can also be used
Easy document preparation with humidifier increasing document sensitivity prior to the imaging process

Categories: ESD Toner/Ozone Reduction Workstations, Indented Writing Analysis

Technical Specifications

Weight: approx. 21 kg (basic system)
Mains connection: 100-240 V / 50-60 Hz
Vacuum pump: -800 mbar
High voltage power supply: 2.5 W

Electrostatic system consisting of:

Basic unit: 450 mm x 440 mm x 210 mm
Vacuum plate: 424 mm x 424 mm (A3 – detachable)
Connection for corona unit with ON/OFF button
Voltage and time regulator
Plastic film for indented writing, type IW, 1 roll, size 0.4 x 500 m (including cutter)
Adhesive film, 2 packs with 24 sheets each, size 25 cm x 35 cm
Cascade developer 1 kg
Toner 1 kg

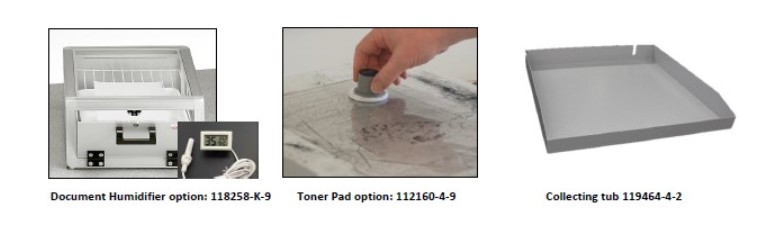

Optional items (as pictured below)

Humidifier
Toner Pads
Collecing tub

Description

The Projectina AG Docustat DS-220 is a dedicated system for visualisation of indented writing on documents.

Videos

ESD Workstations

Also available for the Docustat DS220 is the TORNado ESD workstation. The is a dedicated Toner and Ozone reduction workstation with integrated filter that provides an integrated solution for safe and professional use of ESD systems in the laboratory.

Click here for further information

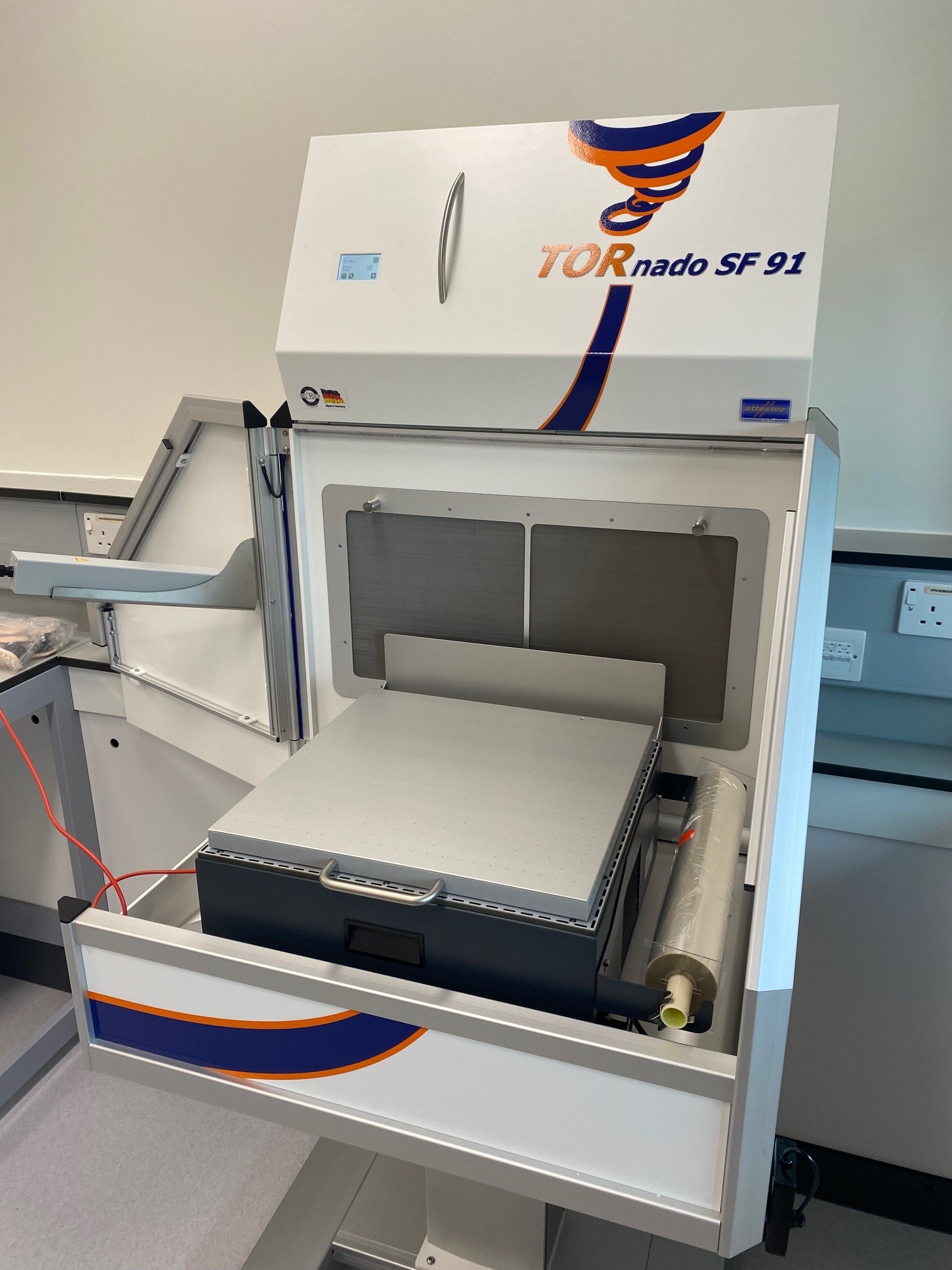

Pictured below is Docustat DS220 integrated with the TORNado workstation.

Downloads

Click here to view and download the datasheet
