HS3B Forensic Magnifier with Integrated Camera and Screen

The HS3B Forensic Magnifier is a simple to use battery and mains operated magnifier with 7 integrated light sources for rapid authentication of ID cards, passports, currency and for visualising fingerprints. The magnifier has an integrated CMOS camera and 3-inch TFT screen for displaying the images.

The magnifier can provide a simple tool for visually verifying:

• Micro-print
• Alterations to documents
• Intaglio and embossed print
• UV security print in passports, ID cards and currency
• Anti-stokes security features
• Fingerprints

Key Features:

• Integrated 5 Mega Pixel CMOS Camera (8 Mega Pixel camera also available)
• 3-inch high definition TFT-LCD screen
• Low distortion IR lens
• Bandpass filter for visible light
• Long pass filter for IR light
• Amplification factor x5, x60 and x100
• Field of view (zoom range) 21 x 15 to 10 x 7mm
• Integrated Rechargeable batteries for up to 2 hours use, rechargeable from UK plug or USB connection to PC/laptop
• Internal 4GB memory for saving images in JPEG format.
• USB2.0 connection for exporting images
• Size: 96mm (L) x 78 mm (W) x 92 mm (H)
• Weight 200 g
• CE certified and RoHS compliant

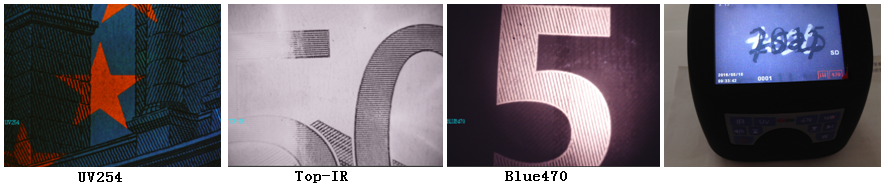

Integrated lighting:

• White + IR LED light incident
• White + IR LED light side lighting (oblique lighting)
• White + IR LED light 90 degree inter crossed
• UVA 365 nm LED
• UVC 254 nm LED
• 980 nm laser (anti stokes)
• 470nm blue LED light
