THE PORTABLE AND TUNEABLE LIGHT SOURCE FOR A WIDE RANGE OF FORENSIC APPLICATIONS
10 POWERFUL WAVELENGTHS IN ONE COMPACT EASY TO USE SYSTEM
Built with quality and performance in mind, the SUPERLITE S 04 is a remarkably efficient illumination instrument that provides 10 discrete wavelengths from UV to Yellow via a liquid light guide and set of collimators. The wavelengths are easy to select and each waveband is fully adjustable in power. Even for non-optimum dark room conditions the high intensity of the SUPERLITE S04 is able to clearly reveal forensic evidence aided by a unique set of optical accessories such as the line illuminator, forensic magnifier and transmitted light pad (as shown below). Also to note is the exceptional UV output with almost no visible light further increases the contrast.
QUIET, PORTABLE AND SUITABLE FOR ALMOST ANY APPLICATION
The SUPERLITE S 04 consumes very little power so it may be battery operated. It is also remarkably light and portable. You can connect many different light guides, including very slim, flexible attachments that enable you to inspect poorly accessible areas. We offer a wide range of accessories for applications in forensics such as fingerprint detection and photography. If you wish to learn more, we will be happy to tell you all about the many other options.
Benefits
10 descrete wavebands – user selectable
Extraordinarily high UV-A output
High energy efficiency for battery operation
Examination of trace evidence without compromising DNA
High contrast provided by a small amount of white light
Many optional accessories for utmost versatility including oblique light and magnifier
Portable and lightweight
Patented safety switch (dead mans handle) prevents inadvertent manual switching
Quiet fan
Slim, flexible light guide
Accepts various size of light guides 1.5m, 1.8m, 2.0m, 2.2m and 2.8m
Also an optional optics set can be used with the Superlite S04 to shape the beam for other forensic applications. These include an:
Optical magnifier – provides magnified images of evidence and provides a mechanism to use in combination with a DSLR camera for evidence capture. Long pass filters can be placed on top of the lens for magnified fluorescence viewing.
Line illuminators for illuminating evidence such as fingerprint / shoeprint impressions on flat surfaces or for gel lifted prints.
Transmitted light illuminator for illuminating evidence such as watermarks on banknotes
Oblique collimator – for examination of flat surfaces including Gel lifts
Magnifier – for examination of fingermarks and trace evidence (also accommodates filter for fluorescence examination)
Description

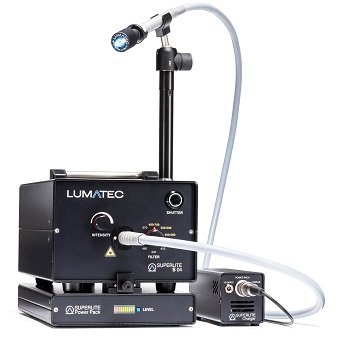

Lumatec Superlite S04 – 10 band tunable forensic light source
