NINcha P31 – Portable NIN / DFO / IND Chamber

Price On Application

Attestor Forensics NINcha P31

The Attestor Forensics NINcha P31 offers a portable system built within a waterproof peli case for developing fingerprints using Ninhydrin, DFO or Indandione. The compact size makes the cabinet ideal for use in crime scene vehicles and remote locations.

This suitcase model can be used with all the same developers as the larger standing models. The interior chamber was are easy to clean stainless steel, as are the evidence racks. The removable chamber evidence racks can hold evidence as large as two sheets of size DIN-A4 paper.

The control system has all the features of the larger models, including the datalogger system, for documentation and quality control. The system also has the same custom and pre-programmed cycles, making evidence development quick and easy. The door of the chamber has a large glass panel so evidence development can easily be monitored throughout the entire process. The door is automatically locked while cycles are running to prevent evidence from being disturbed by unauthorized individuals.

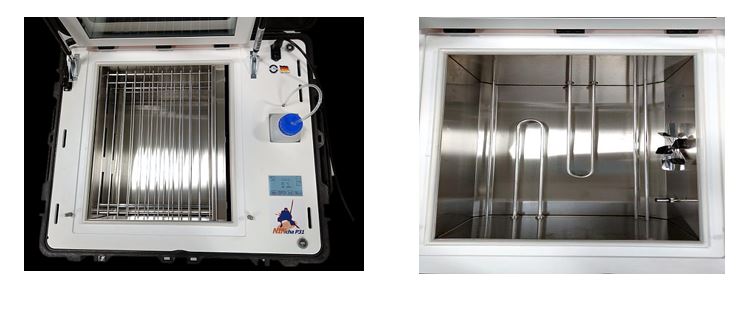

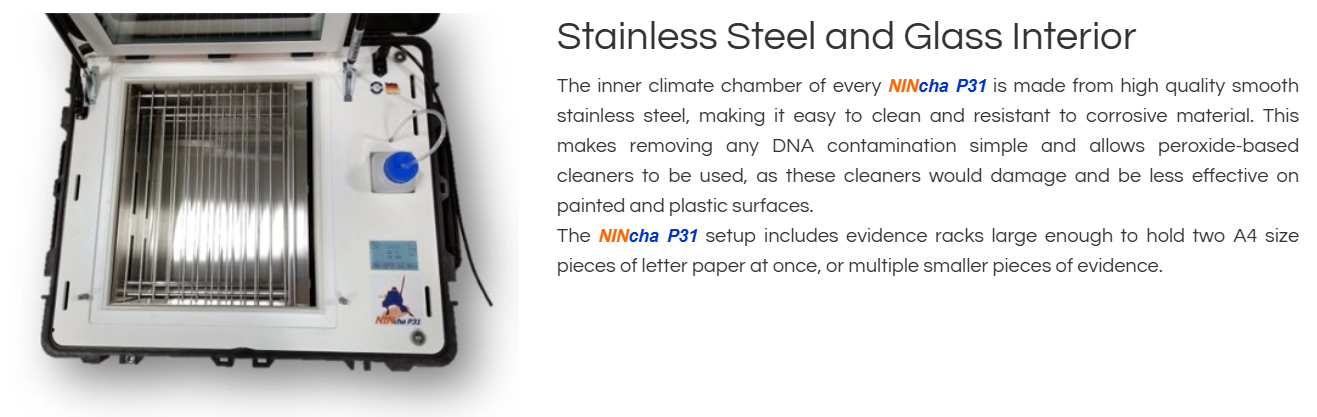

Stainless Steel and Glass Interior

The inner climate chamber of every NINcha P31 is made from high quality smooth stainless steel, making it easy to clean and resistant to corrosive material. This makes removing any DNA contamination simple and allows peroxide-based cleaners to be used, as these cleaners would damage and be less effective on painted and plastic surfaces.

The NINcha P31 setup includes evidence racks large enough to hold two A4 size pieces of letter paper at once, or multiple smaller pieces of evidence.

Features

Rapid fingerprint processing with high workflow rates Fast recovery times for Ninhydrin, DFO and Indandione. Operates within UK FVM requirements at 80 Celsius and 62 % RH for Ninhydrin development.
Pre-Programmed Treatment Cycles for Ninhydrin, DFO and Indandione ensure simple operation and consistently high quality of evidence development. Parameters and timers can be adjusted by a user to his/her demands vi a touch panel control. In addition a manual mode is available.
USB Data Logger Records date, time, temperature and humidity settings in 30 second intervals. Data can be plotted graphically.
Compact size Built within a Peli waterproof transport case with telescopic handle and wheels the NINcha P31 can be transported to the scene of crime or used within a crime scene vehicle.
UV-Decontamination Unit For easy elimination of DNA inside the cabinet, a short wave UV illumination unit can be fitted. The control system automatically detects, when the unit is placed inside.
Internal Water Tank Integrated into the cabinet is a tank for distilled water.
Easy clean design The innovative design makes the cleaning and maintenance of the NINcha system very simple
Clear visibility on the evidence at all times The unique design minimises condensation build up on the window allowing the user to monitor the development process at all times
Low cost of ownership The system is very simple and easy to maintain. The system is built from durable stainless steel which will not rust and provide many years of operation. Annual calibration costs are also very low.

Category: NIN, DFO and Indandione Development

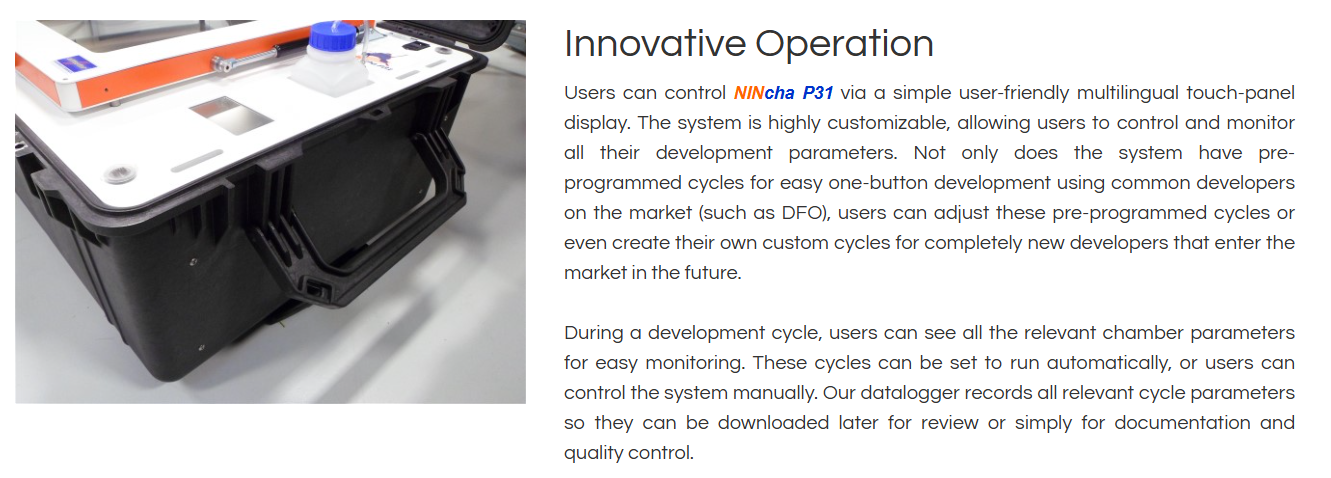

Innovative Operation

Users can control NINcha P31 via a simple user-friendly multilingual touch-panel display. The system is highly customizable, allowing users to control and monitor all their development parameters. Not only does the system have pre-programmed cycles for easy one-button development using common developers on the market (such as DFO), users can adjust these pre-programmed cycles or even create their own custom cycles for completely new developers that enter the market in the future.

During a development cycle, users can see all the relevant chamber parameters for easy monitoring. These cycles can be set to run automatically, or users can control the system manually. Our datalogger records all relevant cycle parameters so they can be downloaded later for review or simply for documentation and quality control.

Condensation is an issue in many climate chambers, producing water droplets that could touch evidence and damage it. Our P31 model, like the larger NINcha models, has a unique condensation control system that ensures your chamber stays at the desired humidity while keeping condensation away from evidence.

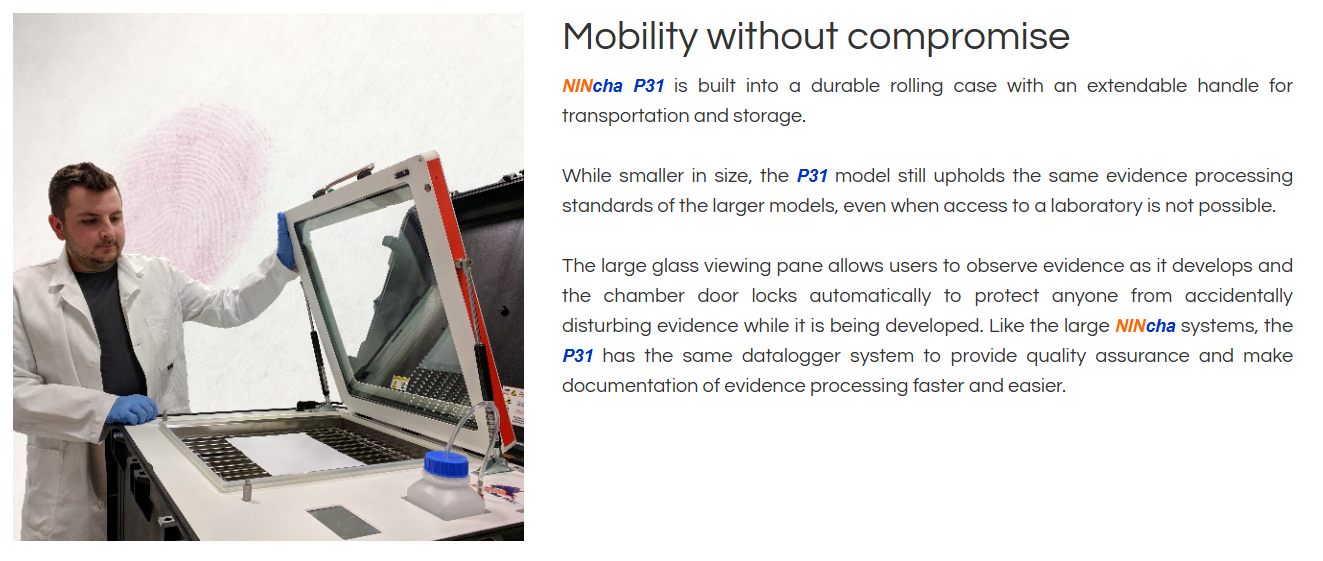

Mobility without compromise

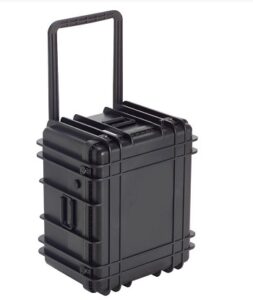

NINcha P31 is built into a durable rolling case with an extendable handle for transportation and storage.

While smaller in size, the P31 model still upholds the same evidence processing standards of the larger models, even when access to a laboratory is not possible.

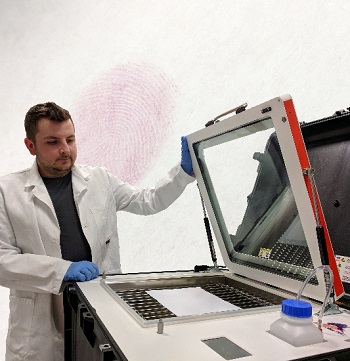

The large glass viewing pane allows users to observe evidence as it develops and the chamber door locks automatically to protect anyone from accidentally disturbing evidence while it is being developed. Like the large NINcha systems, the P31 has the same datalogger system to provide quality assurance and make documentation of evidence processing faster and easier.

Description

The Attestor Forensics NINcha P31 offers a portable system built within a waterproof peli case for developing fingerprints using Ninhydrin, DFO or Indandione.

Reviews

There are no reviews yet.

Be the first to review “NINcha P31 – Portable NIN / DFO / IND Chamber”

Downloads

Click here to view and download the datasheet
