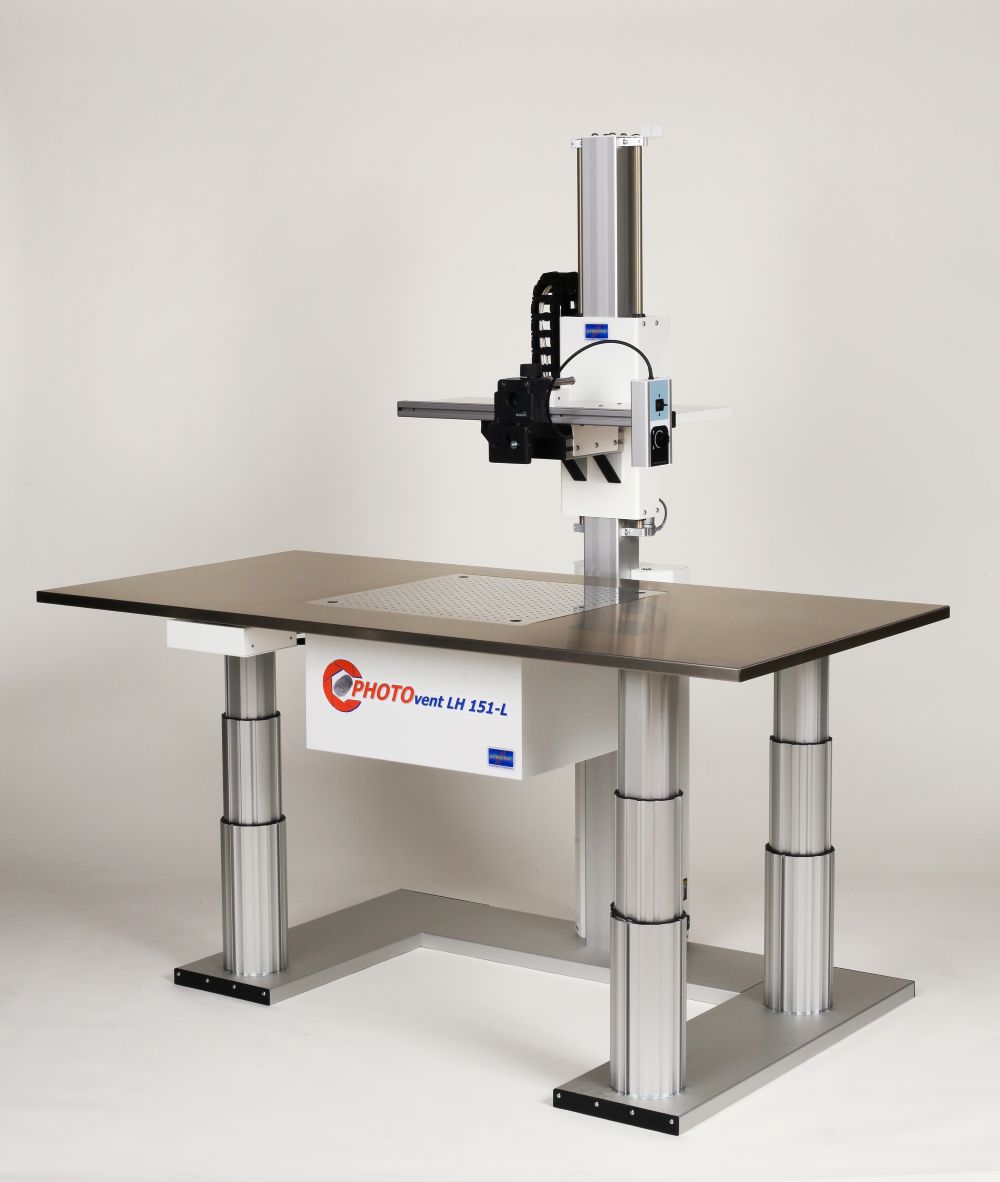

PHOTOvent – DCS Compatible Photography Workstation with Downdraft Filter

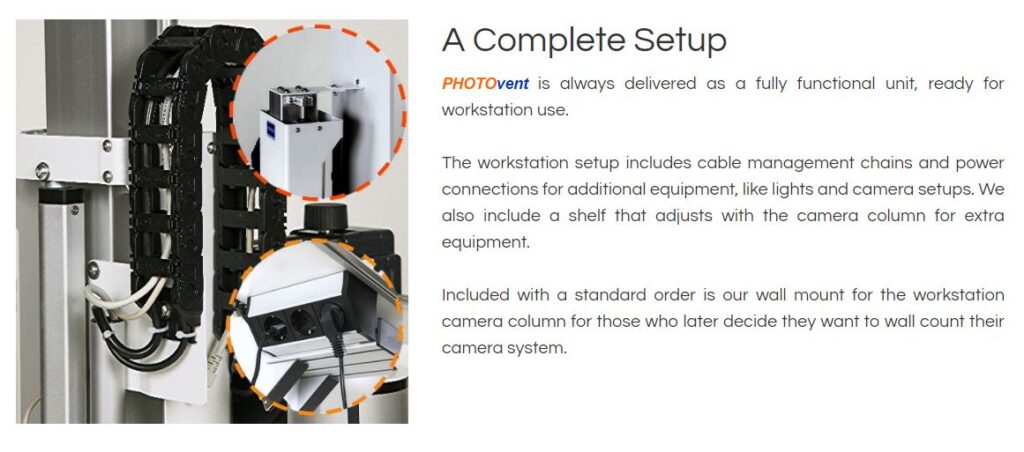

The Attestor Forensics PHOTOvent LH151 provides a professional photography workstation with downdraft filtering.  A DNA easy clean stainless steel surface and motorised precision camera/table positioning provide a professional high end photography platform.  The system also comprises of a lighting and accessory shelf with mains power rail. Ideal for use with the DCS system or any other imaging or camera screening system.

PHOTOvent‘s special integrated filter system is built right into the work surface itself. Fumes and loose particulates like dust and fingerprint powders get pulled down into our multi-stage filter system to reduce the risk of inhalation and contamination without needed any external ventilation hookups.

Our PHOTOvent workstations come in two sizes and have fixed height or motorized height adjustable options so they can be used sitting or standing. They also have a camera column with manual or motorized height adjustment options, depending on the needs of your camera system.

The stainless steel work surface is easy to clean, durable, and can withstand harsh cleaning peroxide and alcohol solutions needed for DNA decontamination.

Key features:-

• Strong downdraft air system
• Touch panel control
• Stainless steel working surface

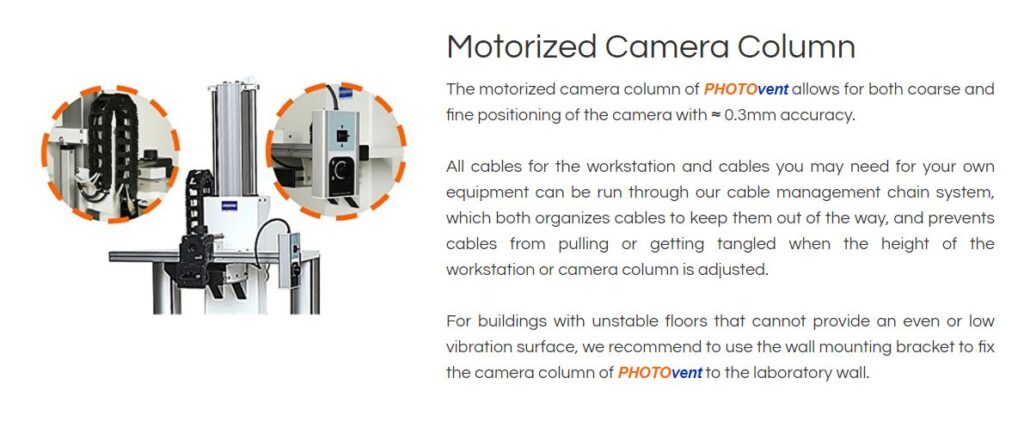

• Camera arm with motorised coarse and highly accurate fine positioning (0.3mm steps)

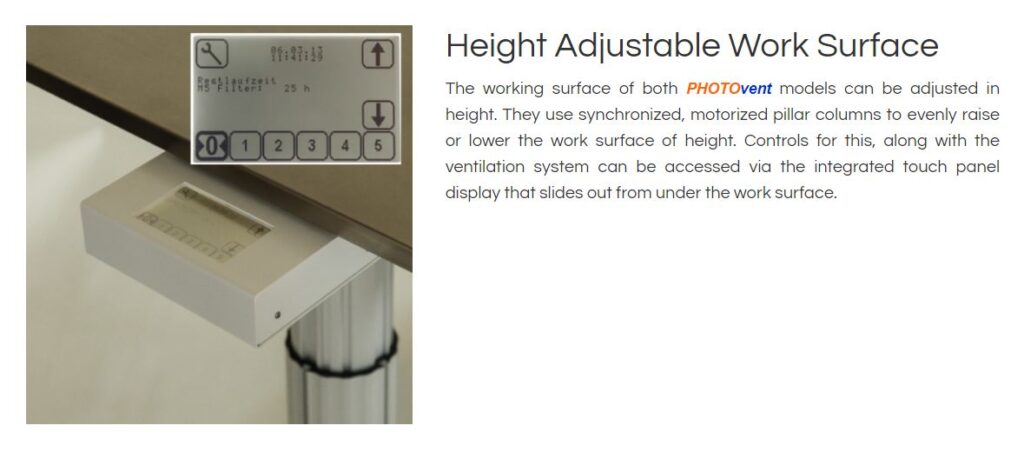

• Variable height adjustment via electrical motor
• Compatible with most photography systems including the DCS4 and DCS5 systems

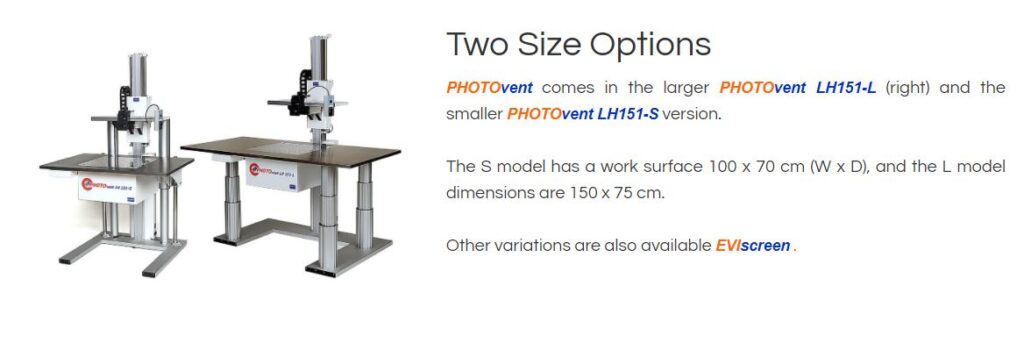

• Available in 2 sizes (Large and Small)

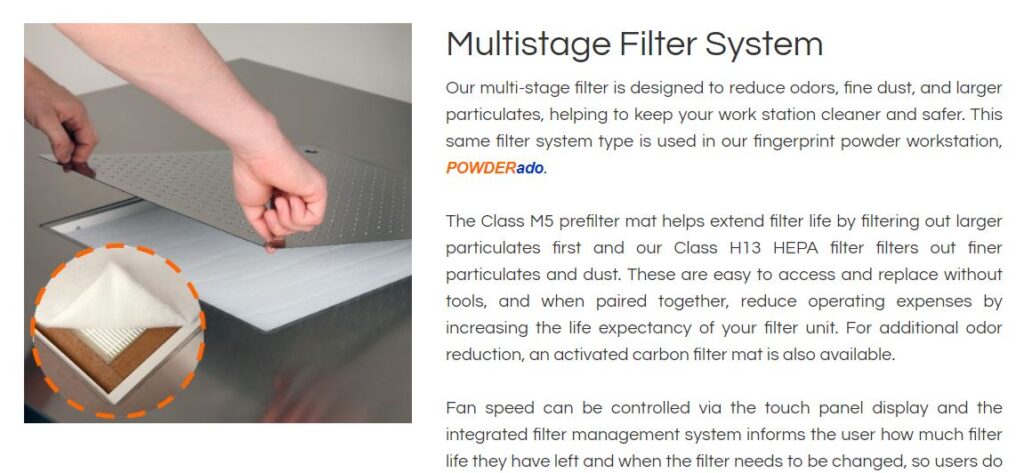

The stainless steel covered working surface of both models can be adjusted electrically and contains a downdraft venting system, consisting of a pre-filter mat type F5 and a fine particulate dust cassette H13.  An electrically movable camera arm with a control unit for coarse and fine movement (with an accuracy of approx. 0.3mm) allows accurate camera positioning. A shelf for accessories such as light sources that moves along with the camera arm and features a cable chain for secure stowing of connection and power leads prevents camera connectors to be damaged by blockages caused by too short cables during camera arm movement.
