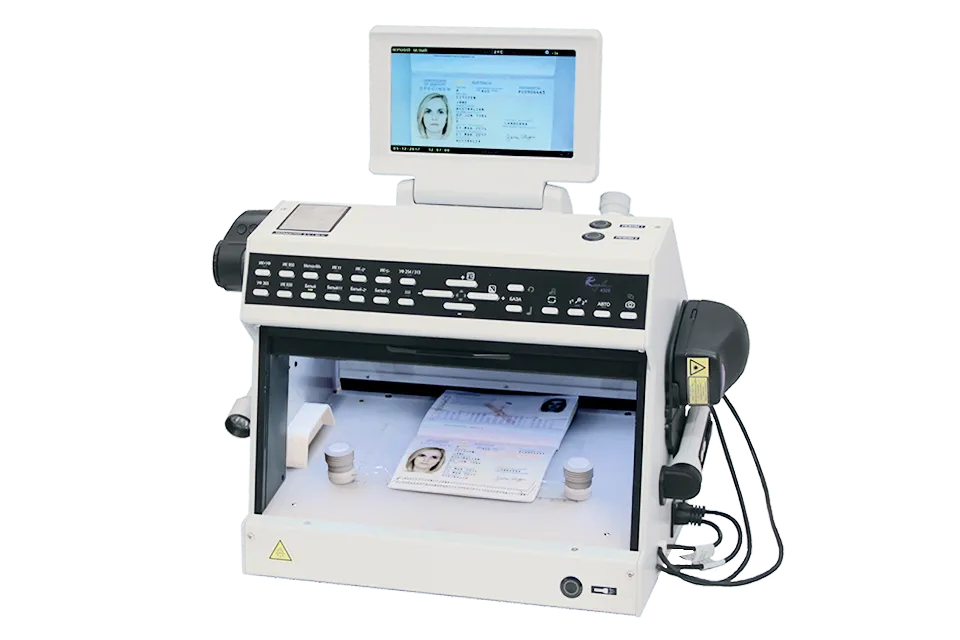

Regula 4325 – First Line Verification System

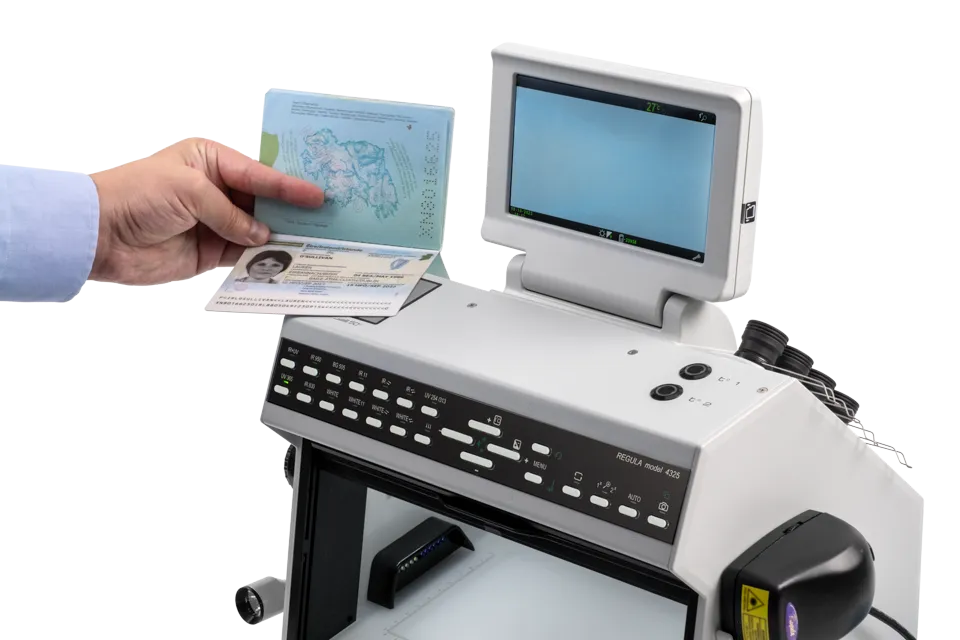

The desktop device Regula 4325 is intended for first-line verification of documents. It is operated with control buttons on the front panel. The control buttons are used to activate light sources and adjust the camera parameters, as well as the thermostage temperature (+10…+50˚С). The device is equipped with a 7-inch screen. Additionally, an extra monitor can be connected.

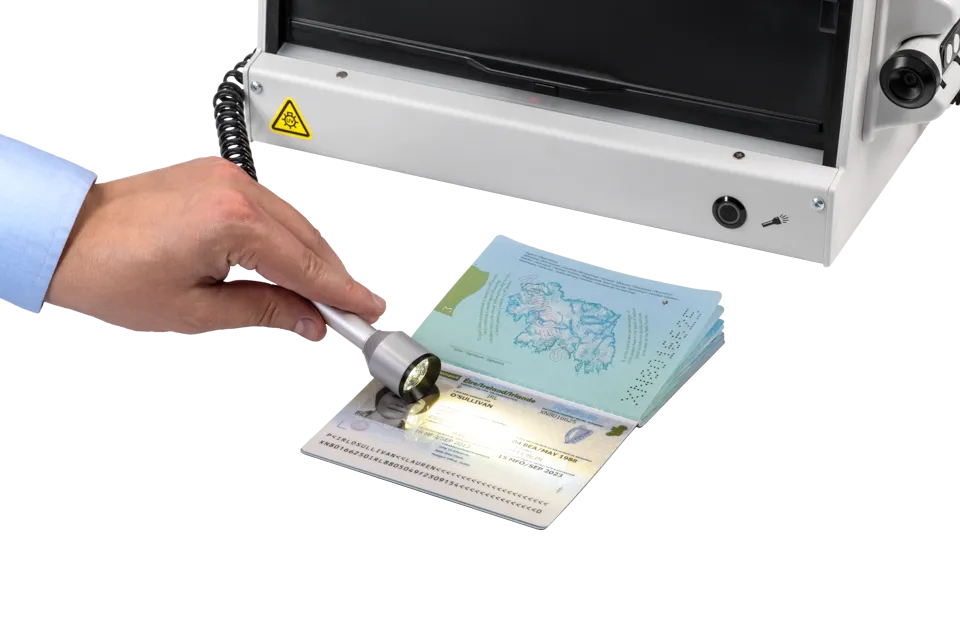

Regula 4325 comprises a torch, a 10x magnifier, Regula 1003M, with two white light sources, a spectral luminescent magnifier, Regula 4127, for advanced document verification, a digital magnifier, Regula 4128, for examination of printing methods.

The device has a spacious working area over the object stage, clamps for securing documents, and a special shield to protect the user from the harmful effects of ultraviolet radiation.

Highlighted Features

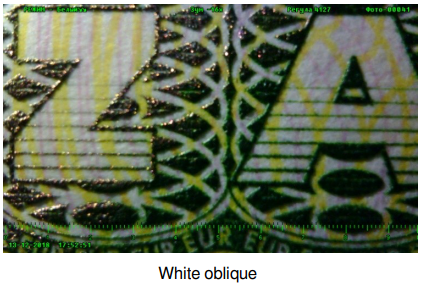

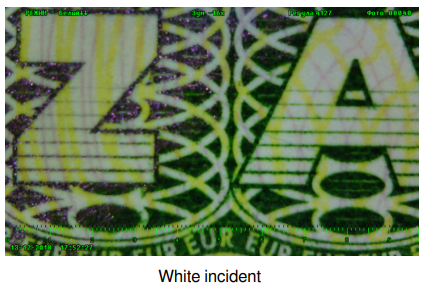

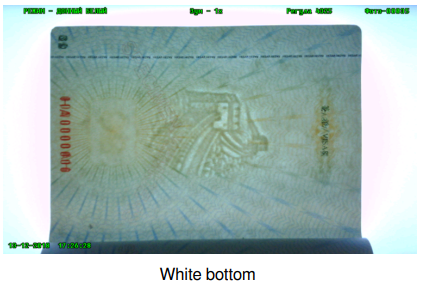

Varied light sources – A whole collection of light sources in the range of 254-950 nm for document authenticity verification.

Embedded thermostage – Examination of security features containing thermochromic ink and composite security features with thermochromic effect (Feel®-ID).

Extra tools – The delivery set includes additional equipment that extends the functionality of the main device.

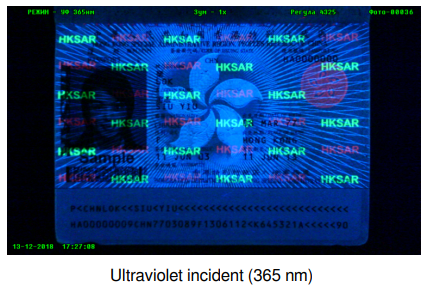

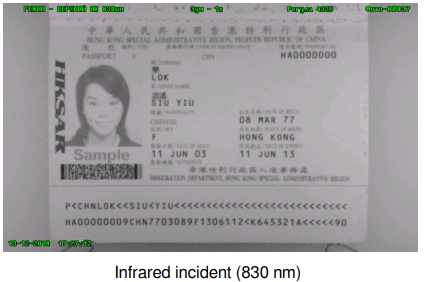

IR and UV at a time – Simultaneous activation of two light sources: IR 850 nm for examination on the monitor screen, and UV 365 nm for visual examination.

Rapid light changing – Automatic switching between selected light sources.

Large documents – Examines documents up to 210×300 mm — A4 paper size.
