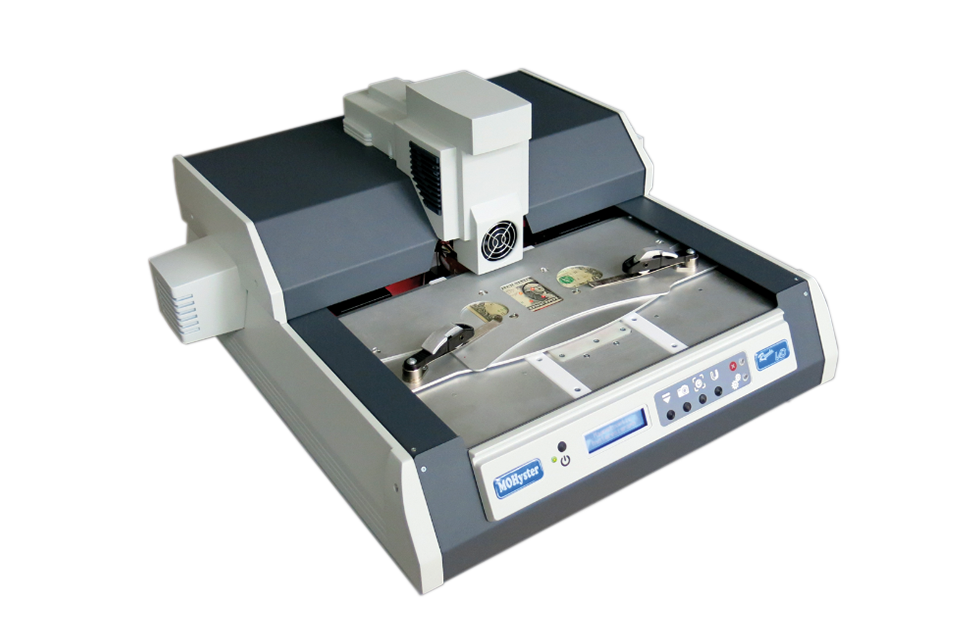

Regula 7708 Magneto-Optical Hysteresigraph

Measurement of Magnetic Hysteresis Characteristics

The key feature of this Regula system is the capability to measure and evaluate the magnetic hysteresis characteristics of security features in documents and banknotes under different magnetization conditions, namely: saturation field intensity, saturation magnetic induction, residual magnetic induction, coercive force, and hysteresis loss.

Based on coercive force measurements, the device can classify magnetic security features in documents and banknotes by the type of ferromagnetic materials they contain (i.e. Soft, SemiHard, LoCo Hard / HiCo Hard).

The hysteresigraph performs the function of magnetic field tomography at various distances from an examined object surface. This function makes it possible to study 3D distribution of the magnetic field and perform integral assessment.

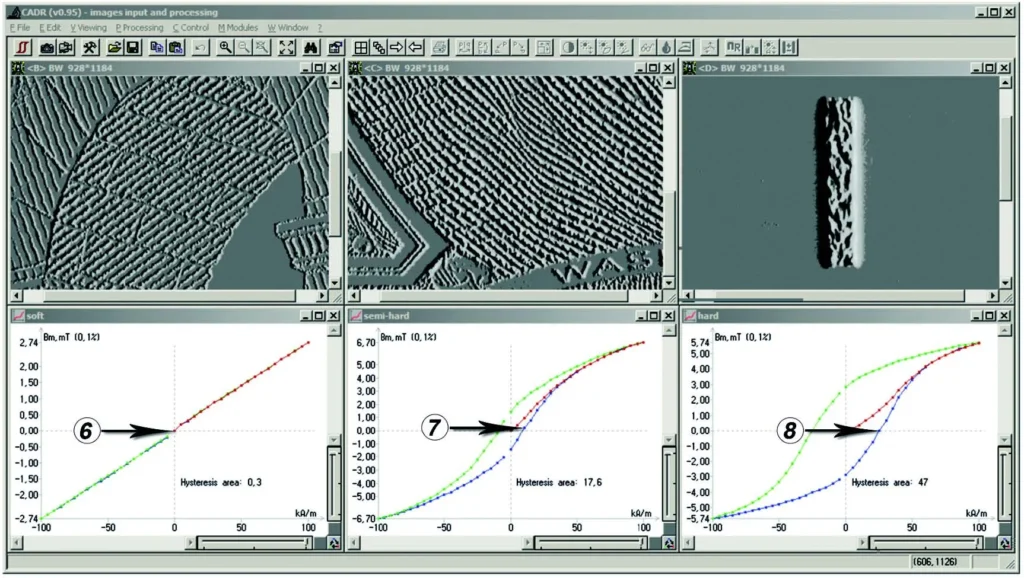

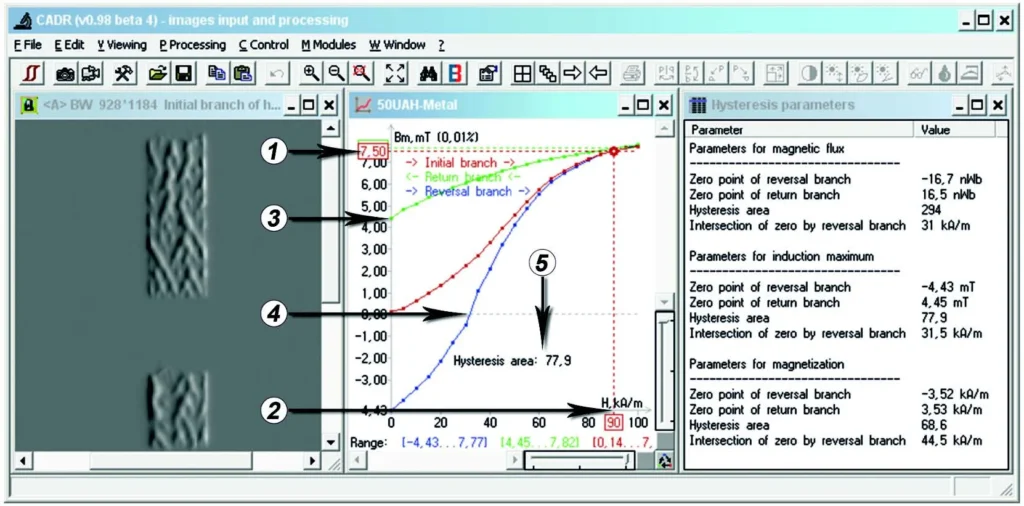

Examples of examination
