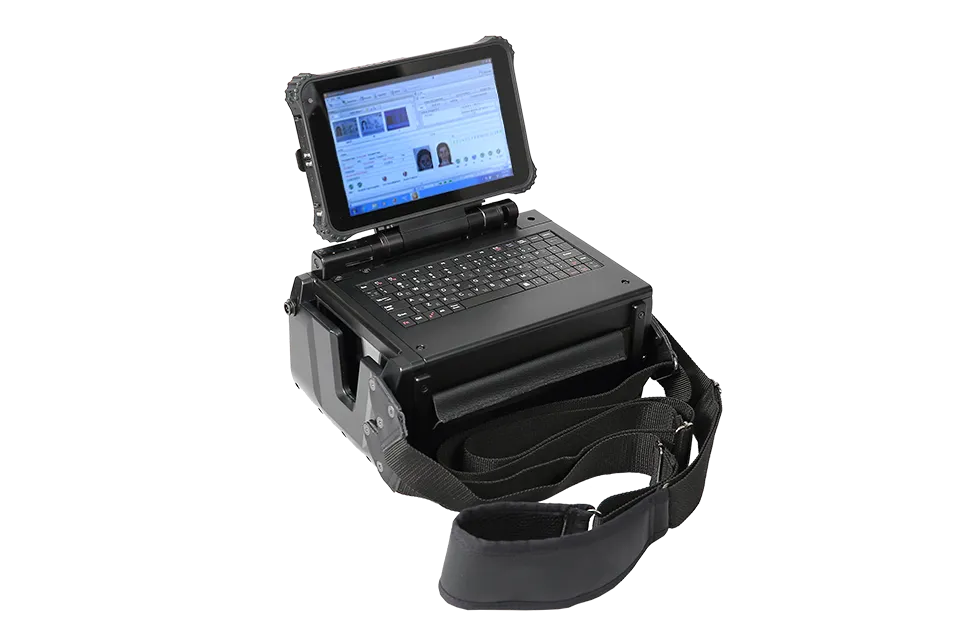

Regula 83x3M Mobile workstation

The Regula 83X3M is a portable workstation for automated reading and authenticity of passports, ID cards, driving licences, visa and other security documents.  The 83X3M enables test and barcode recognition, RFID tag reading with an optional biometric fingerprint scanner.

The workstation is intended for automated reading and authenticity verification of ID-1, ID-2 and ID-3 documents, i.e. passports, ID cards, driver’s licenses, visas and other security documents. It consists of a tablet PC and a document reader.

It can be used both as a portable device powered by a battery pack and as a desktop solution powered by the AC mains.

The device captures images of documents in white, infrared, ultraviolet and white coaxial lights. Light combinations vary depending on device modification.

Some modifications of Regula 83X3M include a biometric fingerprint scanner and a RFID chip reader.

Regula 83X3M is supplied with a fastening kit – a shoulder strap and a waist strap for reliable fixation and is ideal for border patrol agents

The device is controlled via special software Regula Document Reader SDK.

Highlighted features

• Unlimited abilities of SDK – SDK software automatically captures and processes images, reads data from 1D and 2D barcodes, recognizes document type, detects and recognizes MRZ, processes graphic fields, performs OCR of the visual zone and compares text data. *By default Regula 83X3 is supplied with SDK Basic.
• Rapid on-site examinations – The device is time saving solution which not only provides you with the processed results in a few seconds but also makes it possible to perform up to 6 hours of nonstop examinations in field.
• Joined PC and reader – The workstation comprises a tablet PC and an optical document reader. The tablet PC has 8 inch multi-touch screen with IP67 protection rating.
• Smart UV – SDK software reduces over lighting during image capture in ultraviolet light.
• Impeccable reliability – Regula 83X3M is famous for its pinpoint accuracy and ease of transportation. The device body is strong, designed for use in field conditions.

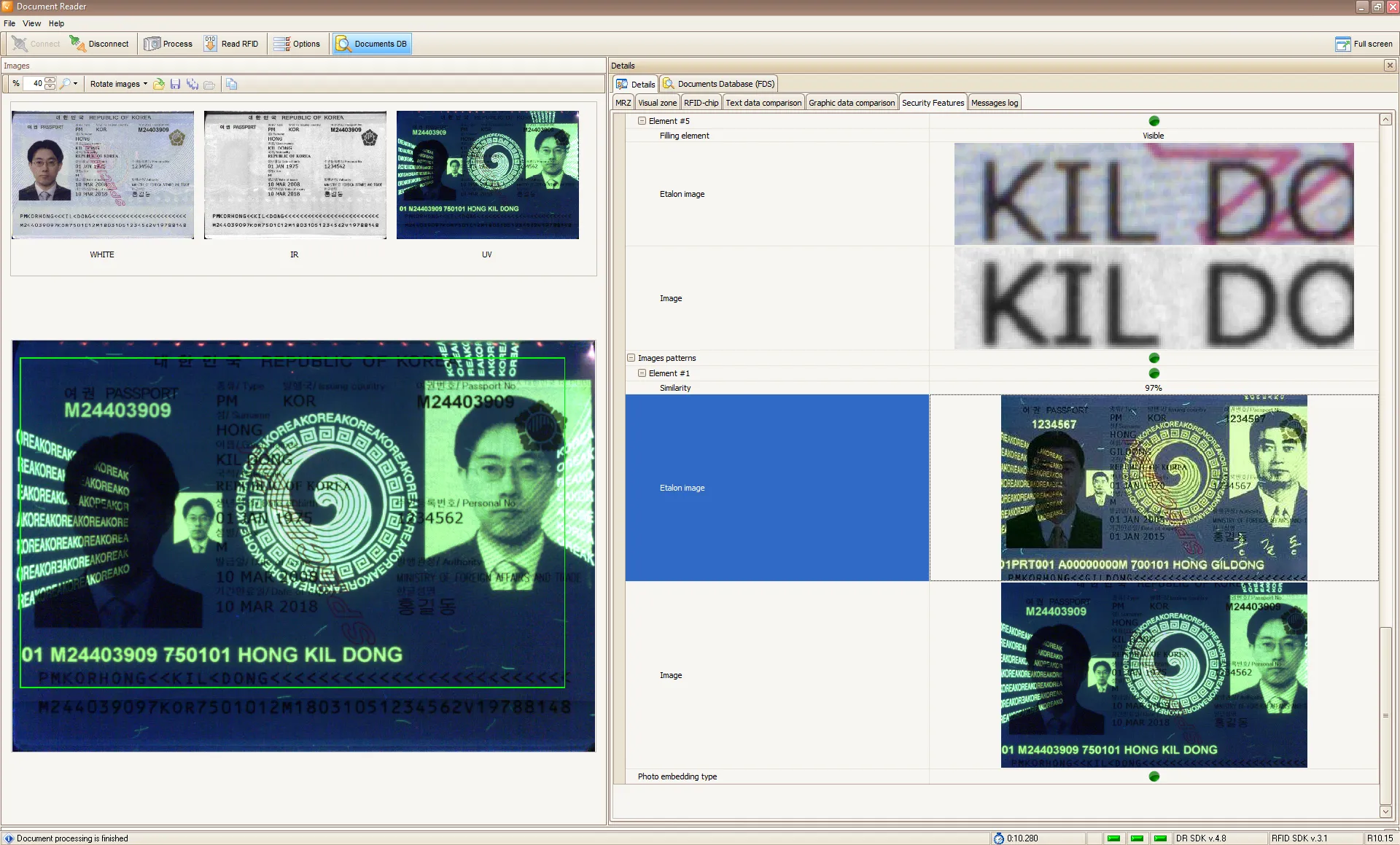

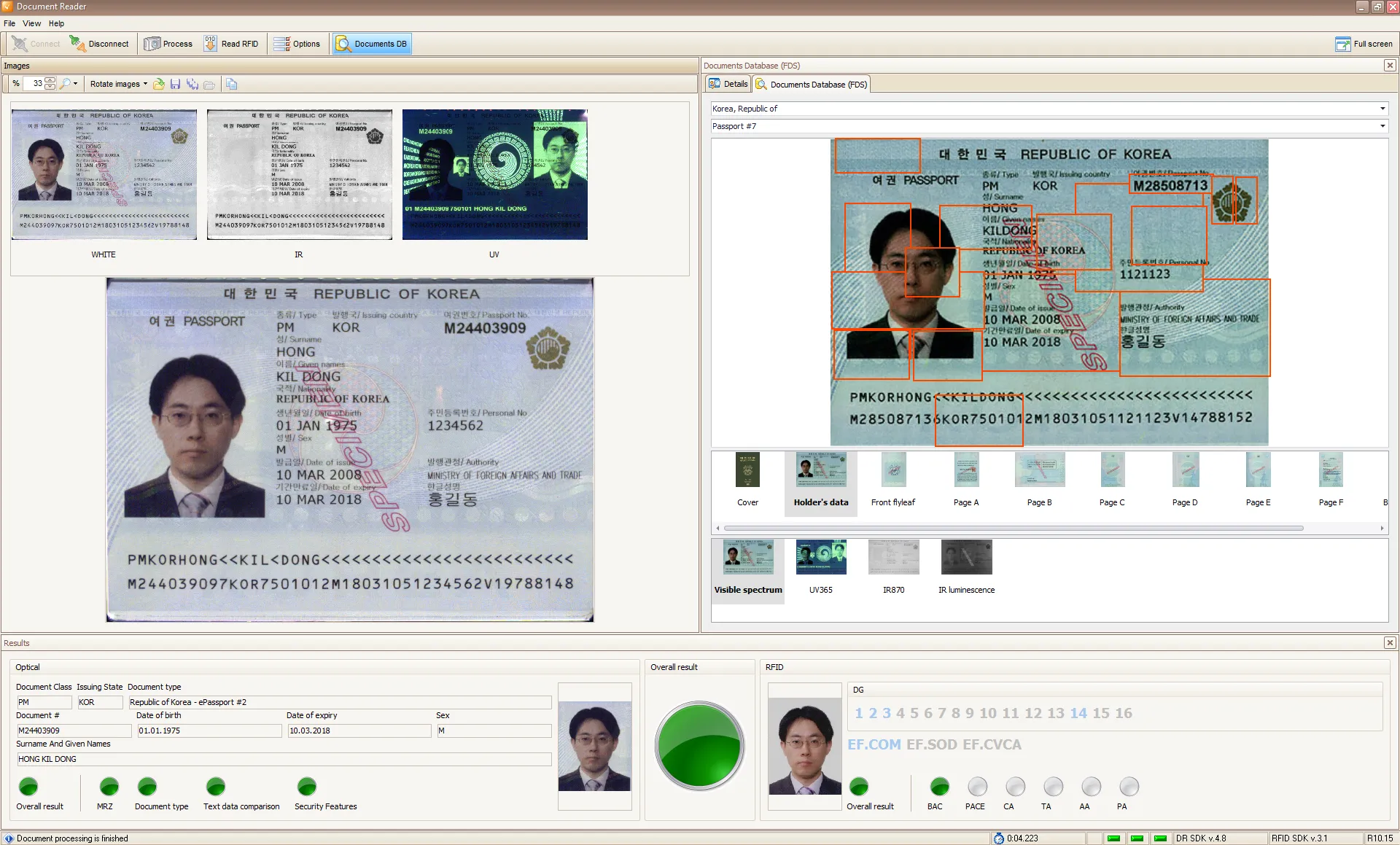

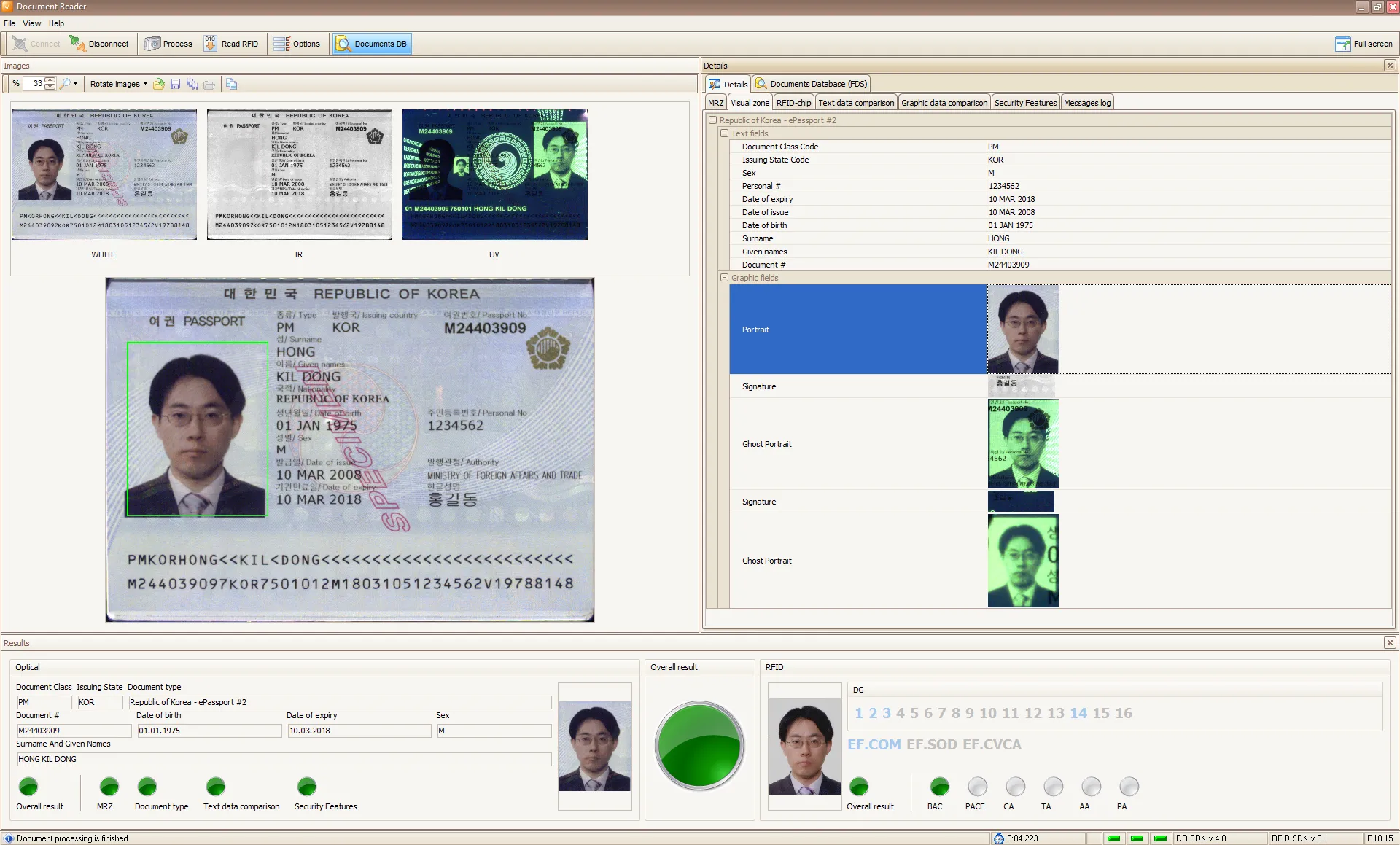

Sample images
