Lumatec Superlite M05 Multihead Forensic Light

Price On Application

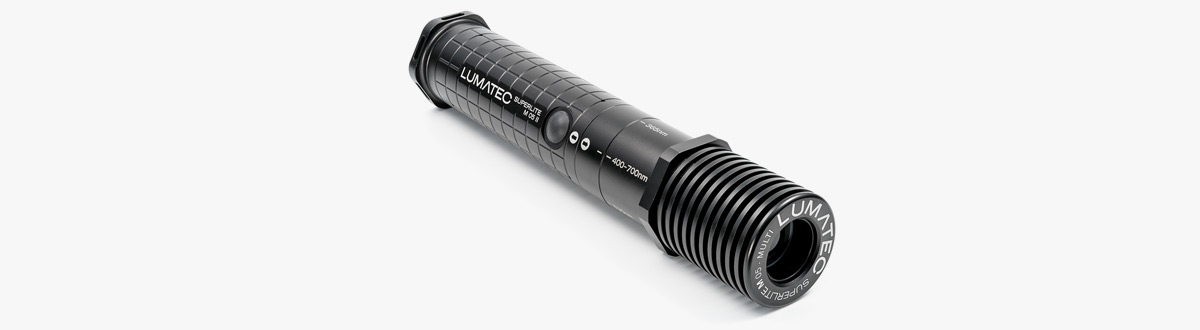

SUPERLITE M05 MULTIHEAD: ONE HEAD FOR ALL WAVELENGTHS

With the new Multihead of the M05 series, up to six different LEDs can be integrated into one head. By simply turning the housing, the excitation wavelength (including 365nm, 390nm, 405nm, 445nm, 530nm, 620nm and white light) can be changed, thus enabling a quick and comprehensive evidence detection at the crime scene! The simplified handling compared to the use of several single wavelength heads, the significantly lower weight and the new housing design, which prevents rolling on flat surfaces, are the most important further developments within the successful M 05 series.

Features and advantages of the new M05 Multihead

4 to 6 different LEDs of different wavelengths are integrated in one head (change between the wavelengths by simply rotating the housing).

Compared to several single wavelength heads, one multihead is significantly lighter (one single head approx. 200g, multi-head approx. 300g). In addition, the handling is simplified, especially in the dark!

Hexagonal anti-rolling design prevents drops and enables the creation of grazing light close to the ground.

In combination with the new battery pack II, twist-proof connection that prevents damage due to incorrect operation.

New design of the ventilation slots, not hindering the air flow when used with the M 05 belt bag.

The new multihead can also be combined with the old battery packs as well!

Note: Compared to the new M05 multiheads, the single wavelength heads have a slightly higher light output and an adjustable light cone.

NEW M05 battery Pack II allows mains-operated continuous use

The battery pack II is now also suitable for continuous operation with the help of a mains connection socket and works with all M 05 heads. A charging adapter is no longer needed and the charging status can be checked via the LED. The 1/4“ threaded hole for mounting on the tripod is integrated into the housing. A guide with a pin enables a twist-proof connection to the new LED multiheads, which effectively prevents damage due to incorrect handling. The new housing design prevents rolling on flat surfaces.

Categories: CSI Forensic LED lights, LED Forensic Light Sources

Accessories

M05 CASES

For your extensive M05 equipment, we offer IP 67 dustproof and waterproof cases, depending on the size, with 3, 5 and 8 recesses for LED heads and other accessories. Optionally available with compartment for light guides in the lid.

M05 BELT POUCH/LOOP

For convenient carrying of a single M 05 on your belt, use our special belt pouch/loop. This is particularly suitable for LED heads with a light guide socket.

FILTER AND GOGGLES

To determine the most appropriate filter, use the Lorgnette with five long-scale filters, graded from yellow to red.

To enhance the contrast of the fluorescence responses, we recommend the Filter goggles set: yellow (500mm), orange (570nm) and dark red (624nm), UV protective goggles when working with UV light.

The Camera filter set: dark yellow, medium yellow, orange, red and light red, each 62mm or 77mm screw thread, is used to enhance contrast when working with photo or video cameras.

POLARISED LIGHT FOR ENHANCED IMAGING OF SKIN, BODY BRUISING

The SUPERLITE M05 also is available with a polarised white Light accessory. This provided enhanced imaging to reduced reflection during photography which is especially effective for imaging skin and body bruising.

Please see below an image of a finger with and without a polariser fitted to the white light. Image with special thanks to Hampshire constabulary CSI team.

Description

Downloads

Click here to view and download the datasheet
