OR-GIR120 Anti-Stokes Detection System

The OR-GIR120 system enhances latent fingerprints that have been dusted with anti-stokes powders). The system consists high intensity 980nm lights with a viewing and camera port.

Visualize fingerprints against complicated backgrounds, like A4 paper, banknotes, newspapers, invoice, magazines, rough surfaces, leather surface, latex  painted wall etc objects.

Features

• IR 980nm light source
• Small friction area to evidence object in the bottom, low degree of wear to evidence
• Strong background removal and high fluorescence contrast
• Battery level indicator light

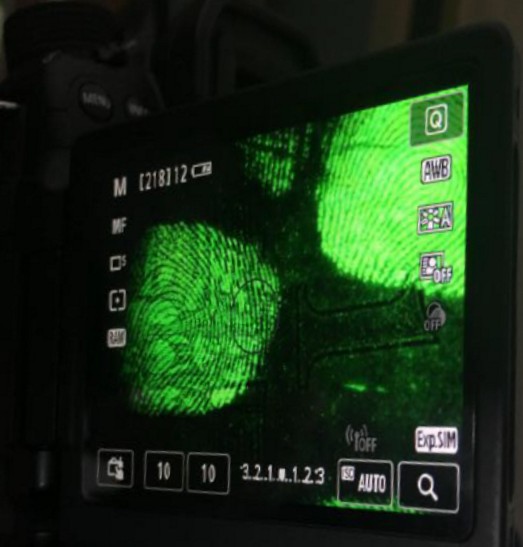

• With φ67mm port for the camera lens
• Built-in cooling system.
• Viewing field DIA. ＞40mm

Technical Specifications

• Power: 120W
• Battery type: Lithium battery
• Battery capacitor: 2200mA
• Battery voltage: DC16.8V
• Lithium battery charger: 16.8V / 5A
• Power supply: Li battery & Li battery charger

System size and weight

• Base: 111 x 111 x 92 mm
• Cylinder: φ90*110mm
• Weight: ≤1.16Kg
