The Regula 7505M is a dedicated device for non-destructive examination of metal surfaces for authenticity verification and detection of vehicle VIN number falsification.

The Regula 7505M is constructed in a protective case as a mobile complex which comprises a USB device for magneto-optical imaging, a magnetic copying tool kit, a spectral luminescent magnifier Regula 4177.

Functionality

1. Magnetic copying tool kit. The tool kit comprises a combination magnetic scanner-demagnetizer with a set of replaceable concentrators, magnetic tape clamps, magnetic tape cartridges, etc.
   • making a copy of magnetic stray fields distribution over the object surface using magnetic tape. The copy displays relief and structural material inhomogeneity.
   • demagnetizing magnetic tapes for further use
   • marking, storing and transportation of a ready-made magnetic tape reserve and obtained magnetic copies
2. USB device for magneto-optical imaging. It is constructed as a module built in the device case.
   • magneto-optical imaging of data recorded on magnetic tape as an intermediate carrier
   • converting a magneto-optical image into a digital TV signal
   • step-by-step scanning of magnetic tape with the help of the tape drive and obtaining a panoramic image
   • indicating the status of device systems
3. Spectral luminescent magnifier Regula 4177. —The magnifier is used for authenticity verification of vehicle related documents.
   • Examinations on different levels
     • protection of the document basis
       • ‌security fibres, planchets, security threads, holograms, foil stamping, pole feature, transparent vanish coating, etc.
     • printing methods
       • ‌intaglio: texts, guilloche frames, rosettes and vignettes, microprinting, latent images and moire patterns, signs for the visually impaired, blind embossing, colour shifting ink, including OVI with embossing and latent images, etc.
       • ‌letterpress: serial numbers, texts, barcodes, etc.
       • ‌offset printing: including Orlov and rainbow printing: texts, microprinting, moire patterns, background and anti-copy patterns, etc.
       • ‌screen printing: security features with optically variable effects, etc.
       • perforation
     • physico-chemical protection
       • ‌anti-Stokes luminescence
       • ‌UV luminescence
       • ‌IR luminescence
     • complex security features:
       • security features with IR-metameric ink
       • special polymer coating of security laminates
       • special polymer coating of security laminates
       • metallized coating
       • laser engraving
   • Additional examination of
     • fragments of document images depending on the degree of absorption or reflection of IR light
     • document alterations such as erasure, etching etc.
     • traces of signature forgery
     • extraneous lines (do not originally belong to the examined object) that are performed with IR opaque inks
     • blurred, crossed out entries, texts and images
     • document mechanical defects such as cuts, tears, folds, etc.
4. Case — for the magneto-optical visualization module and other device components.
5. NUCA software. — The software is used for loading and processing images of identification numbers:
   • comparing image fragments
   • measuring linear and angle dimensions
   • saving and printing obtained images

Principles of operation

1. The magnetic scanner records a magnetogram which is a recording of magnetic stray fields on magnetic tape.
2. The obtained magnetogram is placed in the USB device for magneto-optical imaging where the data about an object surface is read out.
3. The read-out data from the object surface is converted into a digital signal which is sent to a PC for examination and processing with the help of NUCA software.

Application

• Court expertise
• Forensic departments
• Law-enforcement agencies
• Insurance companies
• Car rental and leasing companies
• Auto service centres

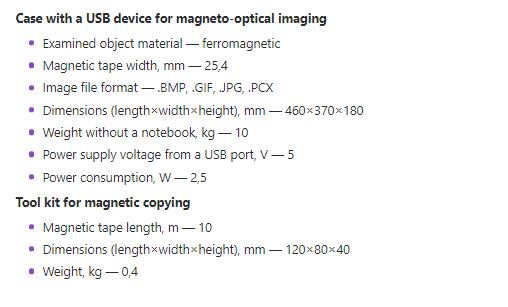

Specifications



View/Download the datasheet



Example images
