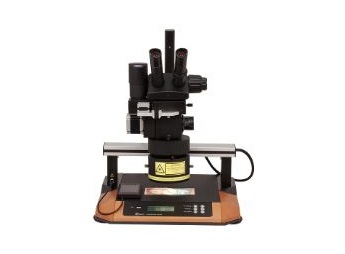

The Regula 5001MK is a high magnification imaging system with different modes of lighting including oblique, incident and transmitted in the UV, visible and IR light regions.

The device has a set of light sources of visible, infrared and ultraviolet spectral ranges and imaging filters used for carrying out forensic expertise. The microscope enables to capture, process and store digital images of examined objects and perform additional visual control using the binocular nozzle.

Regula 5001МК.01 is equipped with an analysis stand which enables to clamp examined objects (bullets, cartridge cases, etc.), to rotate them radially and axially, as well as in the tangential direction (when the movable pincer is taken off).

Functionality

• Manual or remote control of:
  • magnification
  • light sources
  • imaging filters
• Zooming images of examined objects on the monitor screen via USB 2.0 digital camera (3.1 MP)
• Viewing fragments of examined objects
• Capturing, processing and storing images of examined objects on the PC via Regula forensic studio software
• Additional visual control using the binocular nozzle with changeable 8x and 14x eyepieces
• Zooming in and out on the images of examined objects
• Examination of objects in visible, high-intensity UV or IR light

Light complexes

1. Spectral luminescent. The spectral luminescent light complex is used to examine objects in different spectral ranges due to the position of the light sources relative to the working surface. Light sources used:
   • 7 light sources in visible, IR and UV spectral ranges
   • 4 modes of white oblique light and 4 modes of IR oblique light intended for surface microrelief examination
2. Ring. The ring light complex is used to examine objects under shadowless illumination of white and IR light. Each light source has 7 operation modes:
   • ring
   • semiring (2 modes)
   • quadrant (4 modes)
3. Bottom. The bottom light complex is used to detect watermarks, security threads and fibres, see-through register, continuous printing and to reveal document alterations such as erasure, etching and washing-off.

Special features

• Relatively small size of the device
• Compact arrangement of light sources
• Coarse and fine focus adjustment
• Multilingual interface

Application

• Border control and immigration services
• Customs authorities
• Law-enforcement agencies
• Forensic laboratories
• Financial institutions
• Other agencies and organizations authorized to check documents

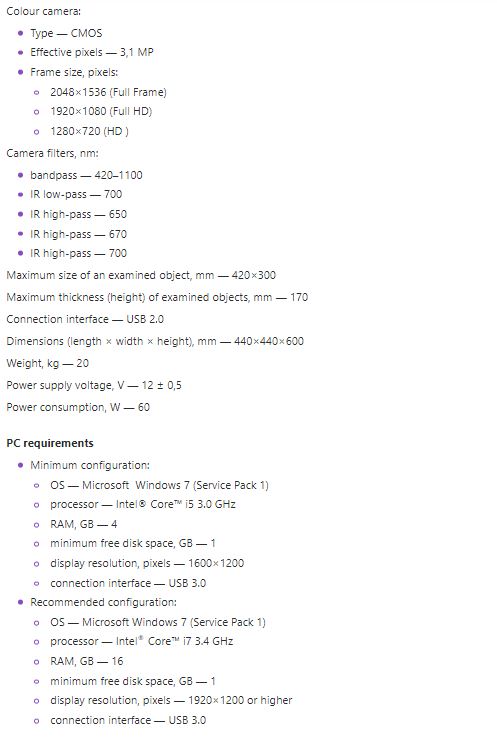

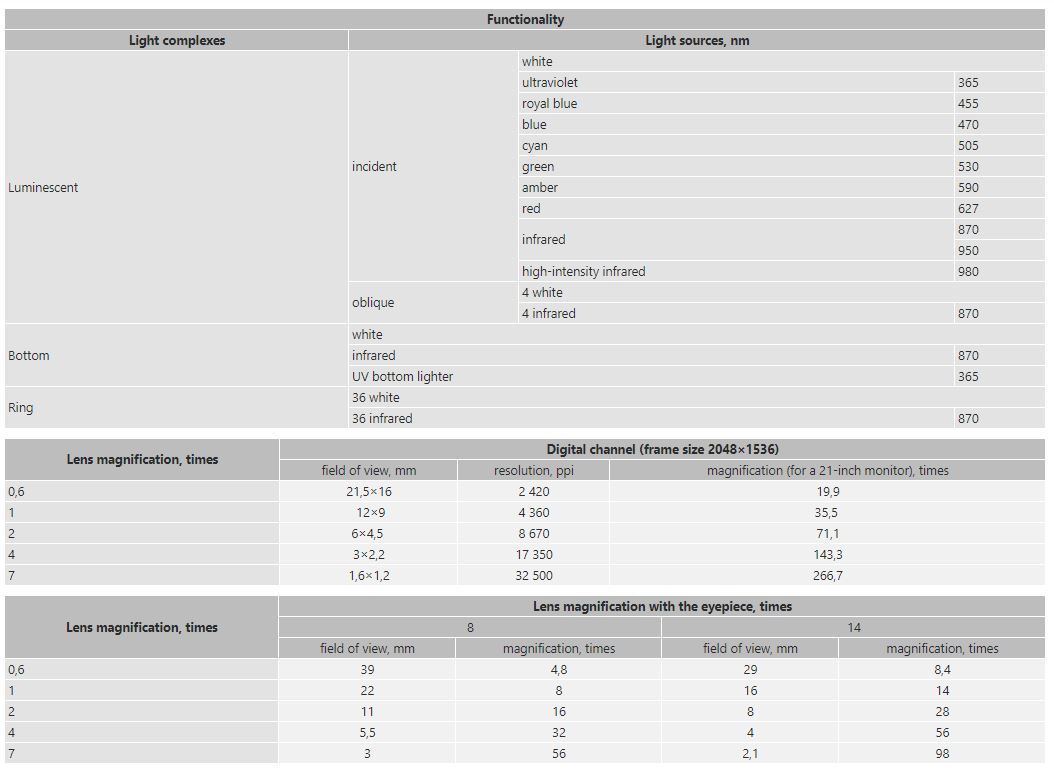

Specifications



Application Images



View/Download the datasheet
